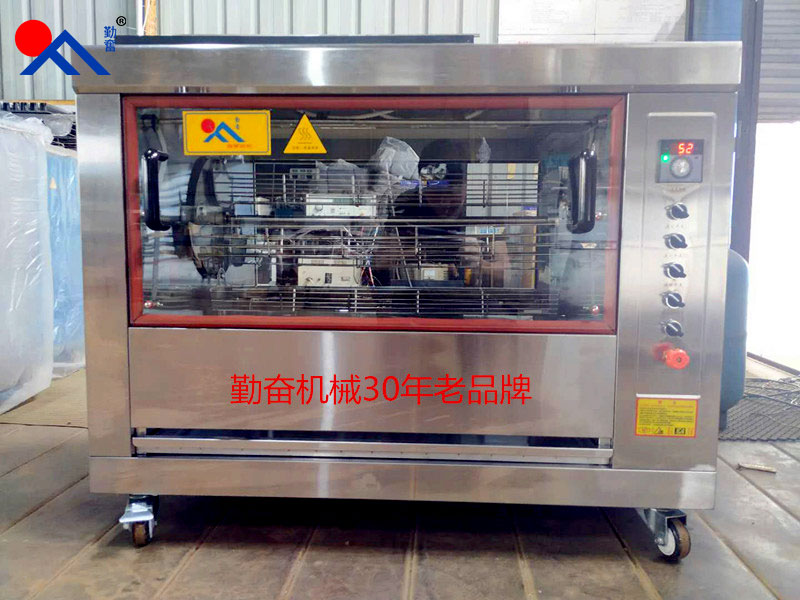

QF series of gas rotary automatic temperature controlling roast fowl box

詳細(xì)說(shuō)明

Brand: diligence models: QF - 28 b

Capacity range: 41 (including) - 50 l l (including)

Control mode: mechanical design: horizontal

Temperature control mode: the up and down tube uniform temperature control capacity: 40 l

Product categories: regular oven purchasing: the Chinese mainland

Said: QF series of gas rotary automatic temperature controlling roast fowl box no. : QF - 28 b

Price: RMB 3500 rules: 1130 * 800 * 900

Electric voltage: 220 v ~ 24 v power: 680 w

From ground: Ryan shipment fee: RMB 300 yuan

Services: basket size: 780 x150x120mm

The main technical parameters:

Model number: QF - 28 b

Working voltage: ~ 220 v or 24 v

Total power: 680 w

Turn the power: 80 w

Lighting power: 600 w

Temperature range: 20 ~ 300 ℃

Type of gas - liquid gas natural gas (T) (Y)

Weight: 112 kg

Dimension: 1130 * * 800 * 900 mm

The machine has small size, high efficiency, simple structure, low noise, easy operation, stable performance, the advantages of cleaning and hygiene is suitable for small and medium-sized food factory, restaurant and cafeteria and other places to use.

Can be applied to the chicken, duck, goose, rabbit and baked fish and other food.

Product details

1. Mainly by the grate, constant temperature crystal glass, heating system, temperature control system, and the transmission system

2. The temperature in the furnace can, according to the realization of automatic control system by the thermometer automatic constant temperature control.

3. The bottom drawer has a discharge of oil, can be in the process of baked product oil recovery to the oil pan.

4. When I opened the furnace is composed of inside and outside the box, heat preservation material by filling in between inside and outside the body for heat insulation. In order to improve the heat reflectivity, thus improve the efficiency of furnace heating.

5. Before and after the oven door adopt large special high temperature resistant glass, can withstand the 300 ℃ is not broken, bore a double set of lights, in the cooking process can be used as auxiliary heat preservation, also can flow management, can also watch the baked product quality at any time.

6. Before and after the oven door USES large area special high temperature resistant glass, can withstand the 300 ℃ not burst, bore a double set of iodine tungsten lamp, auxiliary heating can be done in the process of cooking, can also watch the baked product quality at any time.

7. The machine is equipped with a manual switch knob. Faults and normal production and use of gas heat, such as the switch is damaged, in time to close the gas, in order to ensure safety, and by a professional technician to repair.
